SRC-200 분광 점휘도계

It integrates spectrum, brightness, and color measurement functions

파장범위: 380 ~ 780nm

측정범위: SRC-200S : 0.1 cd ~ 600,000 cd/m2

: SRC-200M : 0.04 cd/m2 ~ 600,000 cd/m2

목록보기

Typical Application Scenarios

SRC-200 spectral radiance colorimeter is mainly used to measure luminance, spectral distribution and colorimetric parameters of various displays. It is widely used in FPD display, backlight, lighting engineering, light source and light emitting component, movie and television, traffic signal, construction, atmospheric luminosity and other fields.

Main Characteristics

1.Integrated spectrum, luminance, chromaticity measurement

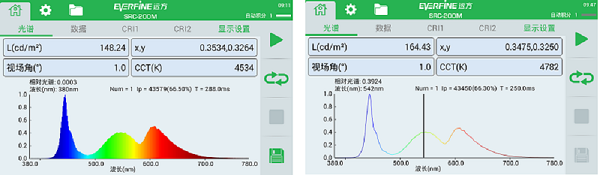

The parameters that can be measured by the system include luminance, relative spectral power distribution, chromaticity coordinate, correlation color temperature, color rendering index, color gamut coverage, etc., covering the luminosity, spectrum and color parameters of the measured object.

2.High measurement accuracy

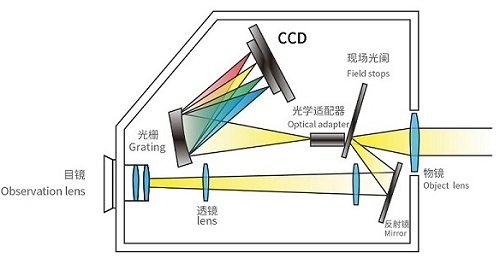

The system uses spectral method (spectrophotometry) to measure luminance and color parameters, it has no V（λ) and tristimulus mismatching error compared with tristimulus-filter detector.

3.High reliability&Great cost-effective

The measurement technology of spectral has been maturely applied in the past 20 years, it offers high reliability&stability and great cost-effective ratio. More than 10,000 customers all over the world choose this method.

4.Convenient storage and data transfer functions

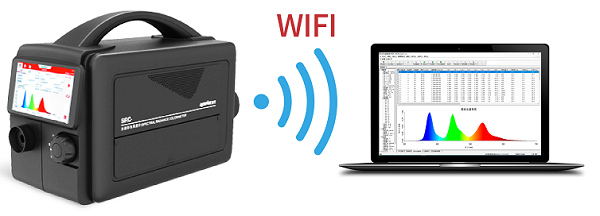

SRC-200 can store 200 groups of test data, and can realize data transmission via WiFi, it can connect to a laptop computer to remote control instrument measurement and data transmission.

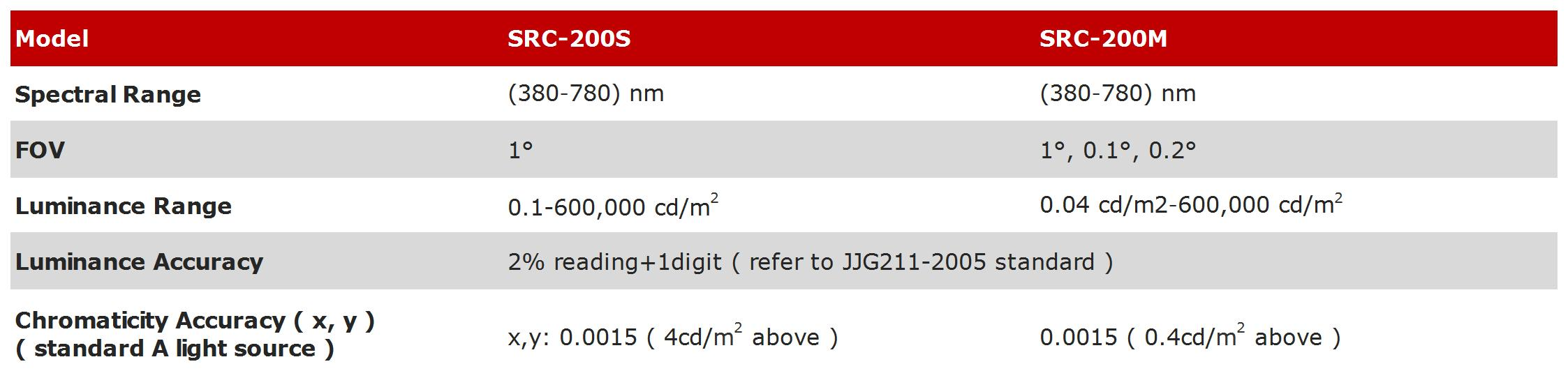

Technical Specifications
