OLED-2000 다채널 OLED 가속 노화 수명 및 광전 성능 분석 시스템

Multi-channel test, high test efficiency Location AI recognition, high degree of automation

목록보기

Typical Application Scenarios

OLED-2000 Multi-channel OLED Accelerated Lifetime&Optical Property Test System integrates high and low temperature channel, high-accuracy test software, automatic turntable and OLED professional test software, mainly used for multi-piece OLED screen high and low temperature test, aging life analysis and light, chromaticity performance analysis, with high test accuracy, fast test speed and other advantages

Main Characteristics

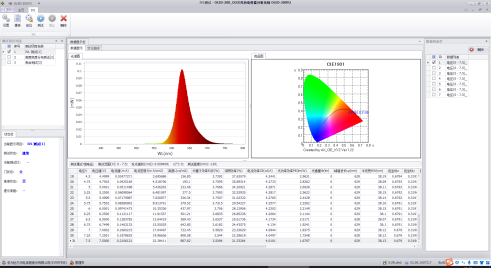

1.Integrated spectrum, luminance, chromaticity measurement

The parameters that can be measured include luminance, relative spectral power distribution, chromaticity coordinates, correlation color temperature, color rendering index, color gamut coverage, etc., covering the luminance,spectrum and chromaticity parameters of the measured object.

2.High and low temperature test

The system is suitable for the accurate measurement of the Luminance and color coordinates of the OLED display screen in the high and low temperature environment, and is equipped with mature measurement software, which can realize the timing measurement, and has the advantages of high test accuracy and fast test speed.

3.Multi-channel test, high test efficiency

The mobile platform configured in the system can measure the aging life, Luminance, color coordinate, spectral distribution, color rendering index, color temperature, peak wavelength and other parameters of multi-OLED.

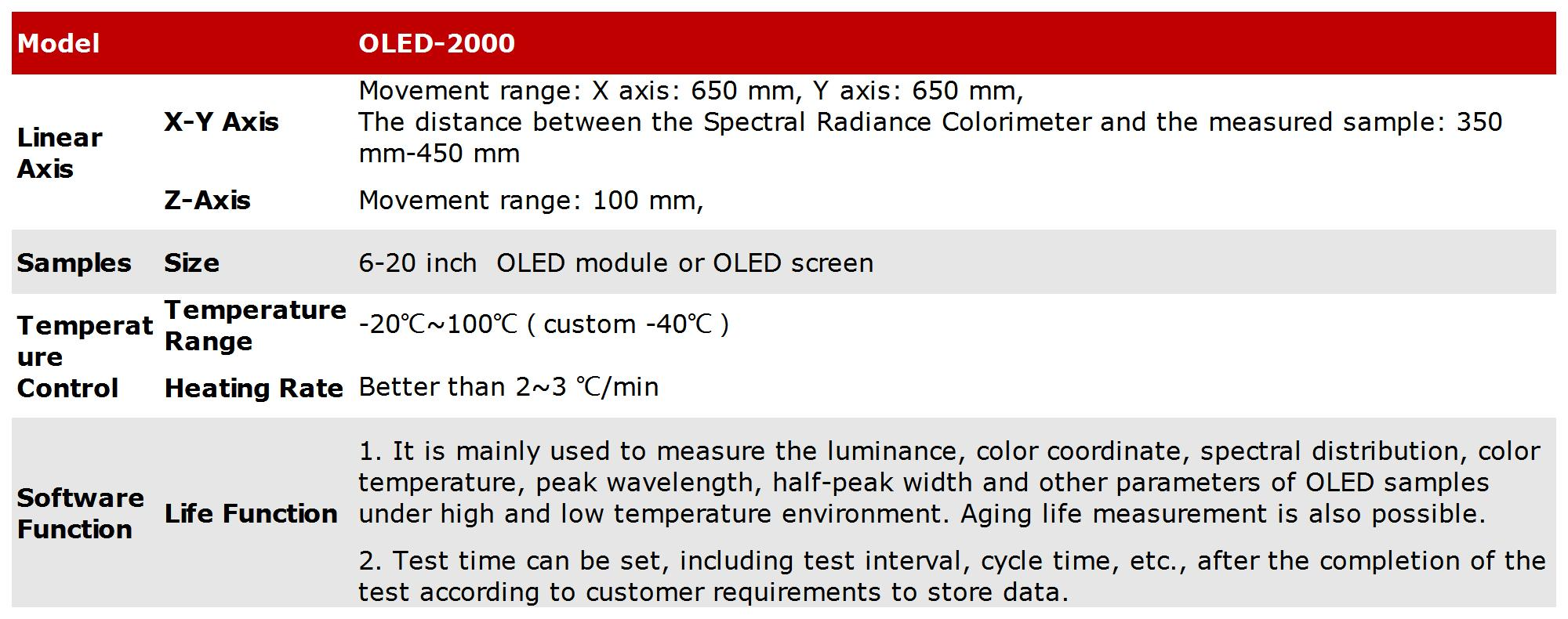

Technical Specifications
