LM-3 점휘도계

The principle of lens imaging is utilized Brightness is measured in a non-contact state

: 2º : 0.001 ~ 10,000 cd/m2

: 1º : 0.004 ~ 40,000 cd/m2

: 0.2º : 0.1 ~ 1,000,000 cd/m2

: 0.1º : 0.4 ~ 4,000,000 cd/m2

목록보기

Typical Application Scenarios

LM-3 luminance meter is widely used in the luminance measurement of dashboard, nixie tube, backlight unit, phone screen, LED screen, FPD TV, projector screen, road lighting, landscape lighting, light source,  light emitting component,traffic lamps,etc.

Main Characteristics

1.Precise measurement accuracy

Use the photoelectrical detector elements, whose spectral response is strictly comply with CIE V(λ), to guarantee the high accuracy.

2.Wide luminance measurement range

Wide luminance measurement range from 0.001cd/m2~4,000,000cd/m2

3.Low power consumption,suitable for outdoor usage

Built in interchangeable battery, it is not can be used in laboratory but also on site measurement.

4.Data storage

It can save 512 groups test data.

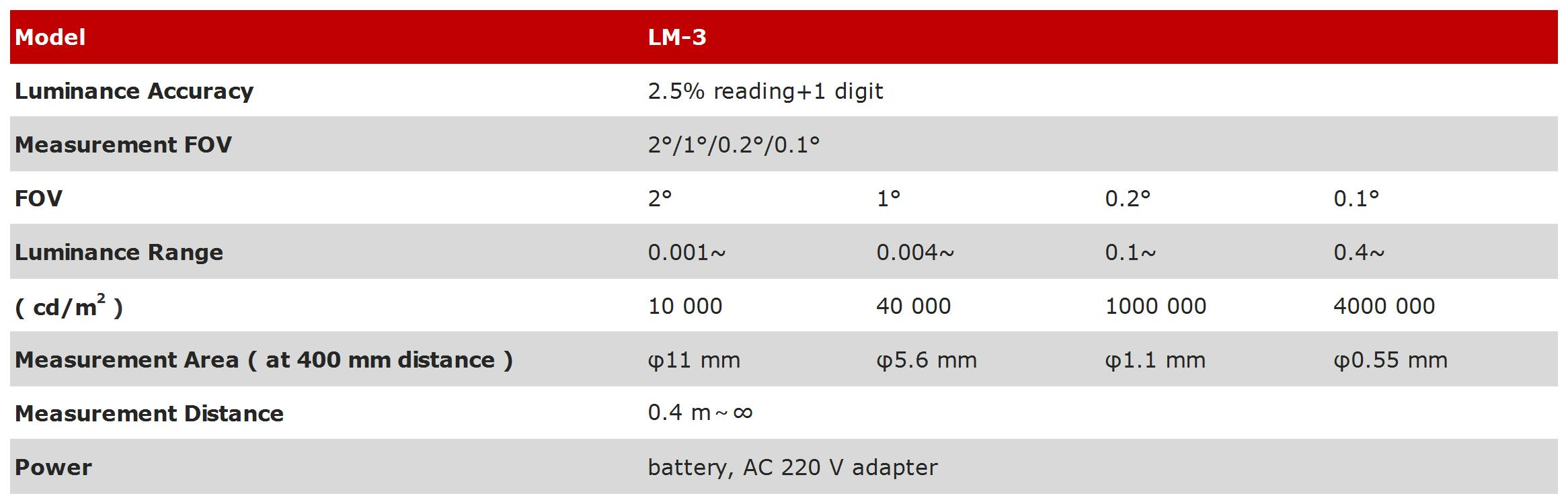

Technical Specifications
