POPA-2000 프로젝터 광학성능 분석 시스템

The measuring points can be placed flexibly to meet standard and internal control requirements Spectroscopic measurement, high accuracy and good consistency of illuminance and color measurement

정밀도: 3%

조도범위: 0.01 ~ 5,000 lx

파장범위: 380 ~ 780 nm

색온도 범위: 1,000 ~ 100,000 K

목록보기

Typical Application Scenarios

POPA-2000 is mainly used to analyze the illuminance, chromaticity coordinate, Color Temperature, Color Rendering Index: Ra, Spectral Power Distribution P(λ) and other photometric and chromaticity uniformity parameters of 9 test points projected by the projector in a special plane

Main Characteristics

1.Multiple patented technologies

Using spectral method to measure illuminance and chromaticity parameters, there is no V(λ) mismatching error, and the measurement accuracy is extremely high

2.Multi-channel synchronous testing

Has strong data processing capabilities, while analyzing and processing the illuminance and chromaticity of 9 channels.

3.Multiple measurement parameters

Through spectral measurement, color parameters such as color temperature and color rendering index can be evaluated to better evaluate the color reproduction effect of the projector.

4.Software operation

The software can set different threshold standards for projectors with different requirements, and can also call different threshold standards at will.

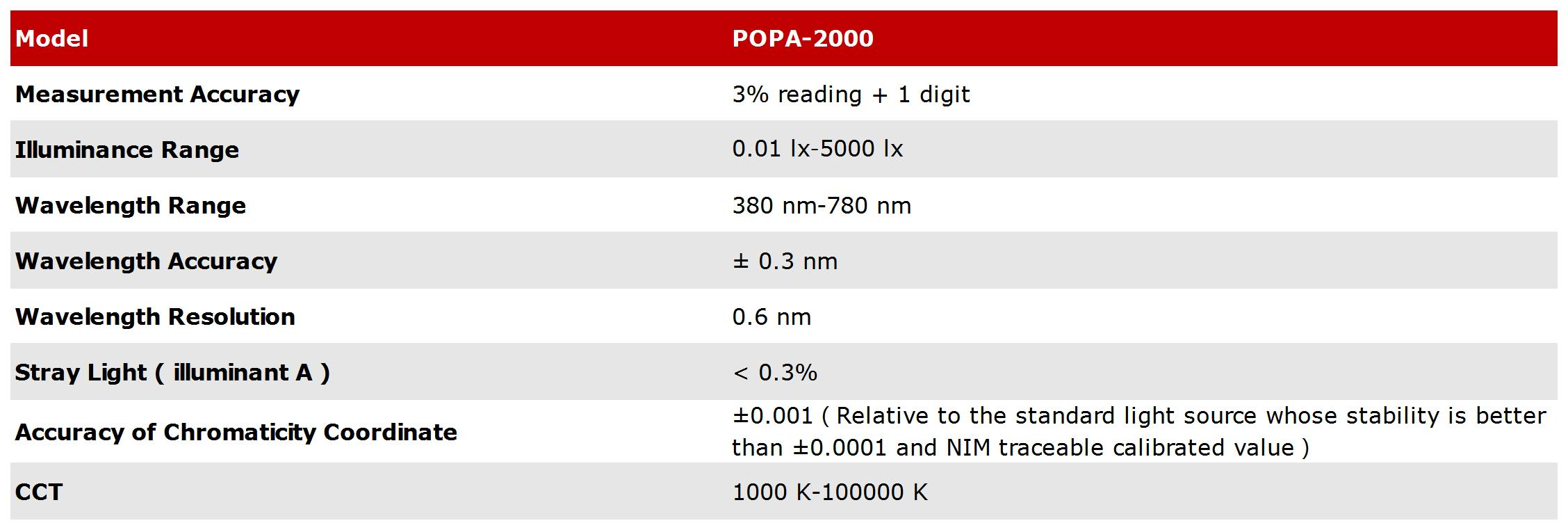

Technical Specifications
