SLS-300 대구경 휘도광원

Large brightness and illuminance adjustment range Built-in high-precision monitoring detector

파장범위: 350 ~ 2500 nm

휘도범위: 0.05 ~ 10,000 cd/m2 조절가능

색온도: 2856K ±25K

구경: F300mm

목록보기

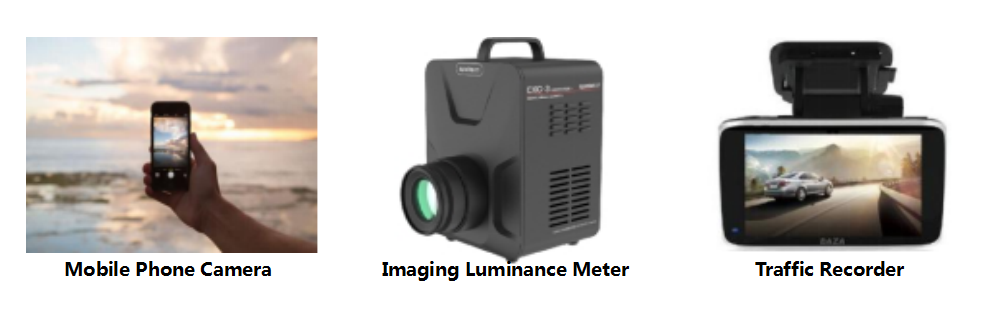

Typical Application Scenarios

The SLS-300 standard light source has a large luminance and illuminance adjustment range, high light source stability and good spectral continuity. The built-in high-precision monitoring detector has high output value accuracy. It is suitable for measurement and correction of cameras, ambient light sensors, and imaging devices.

Main Characteristics

1. Large spectral range (350-2500nm) and outlet diameter (300mm) for imaging luminance meter and spot luminance meter calibration.

2. The luminance dynamic range is large: 0.05-10000cd/m2, and the luminous surface has high uniformity and stability

3.Built-in high-precision luminance detector, stable monitoring light source, combined with the calibration of special software, can provide real-time data of luminance fluctuations

4.The color temperature maintains a good stability under both the high and the low luminance

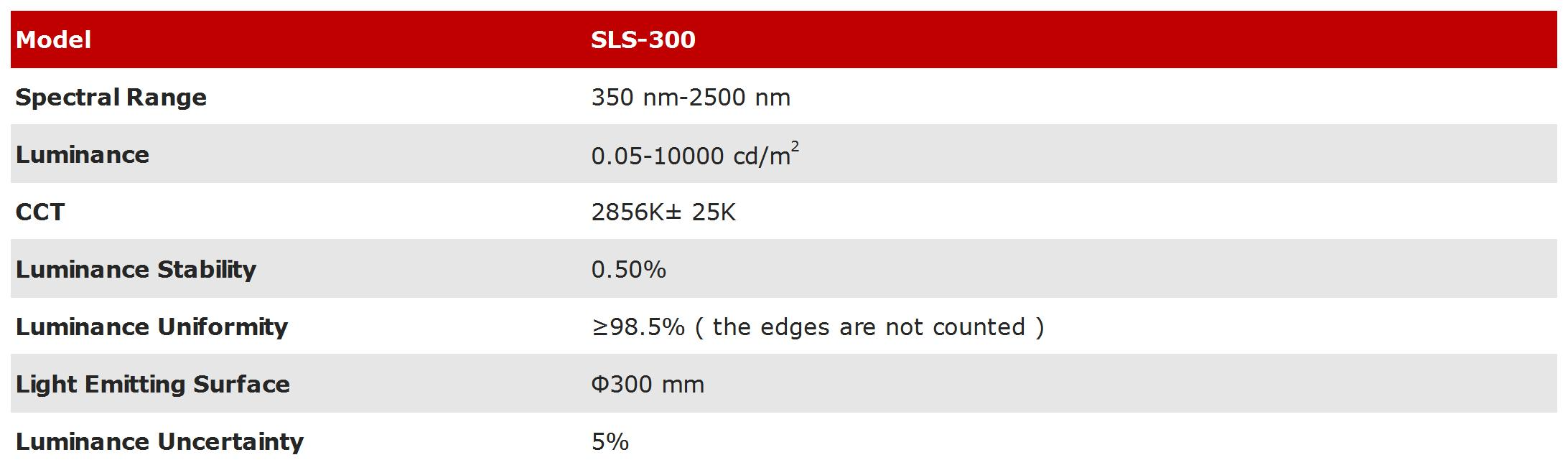

Technical Specifications
