SLG-2000 큰사이즈 균일도광원

Simulates the optical performance of a solar spectrum observation display Large glossy surface and good uniformity

밝기: 6000(±50) cd/m2

광원: 6500, 5000K 변환가능

균일도: ≥90%

광원사이즈: 1500 * 850 mm

목록보기

Typical Application Scenarios

SLG-2000 is a set of uniform luminance source that can provide large-size luminous surface. The light source has the advantages of good luminance uniformity, high stability, convenient use, and adjustable output current. It can provide a stable and uniform luminance source when testing panels in the display field, which is convenient for the quality inspection department to screen defective products and improve product performance.

Main Characteristics

1.The output spectrum is close to the solar spectrum

The output spectrum of the luminance source is close to the solar spectrum, and the color temperature can be switched between 6500K and 5000K, which is suitable for observing the change of the optical characteristics of the glass panel under the condition of simulating the solar spectrum.

2.High output stability

Adopt high-performance light source and high-precision and high-stability special precision DC power supply to better ensure the stability of photometric output;

3.Integrated unique design, simple and convenient operation

4.Large output diameter, wide application range

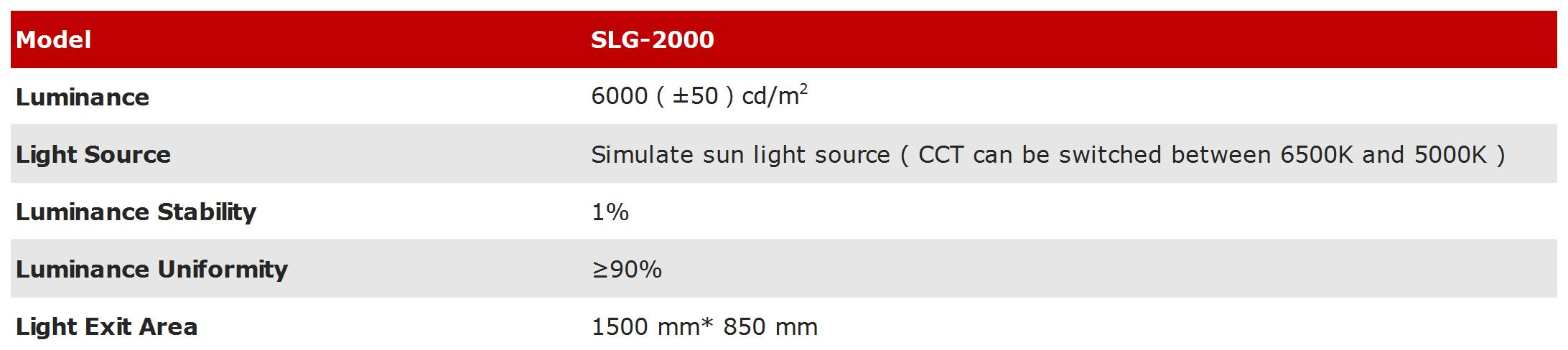

Technical Specifications
