SLS-50 표준휘도광원

Automatically adjust the output target brightness, and the color temperature accuracy within 10K perfectly surpasses the peers

휘도범위: 1 ~ 10,000 cd/m2

균일도: 98%

색온도: 2856K ±20K

정밀도: ±2%

목록보기

Typical Application Scenarios

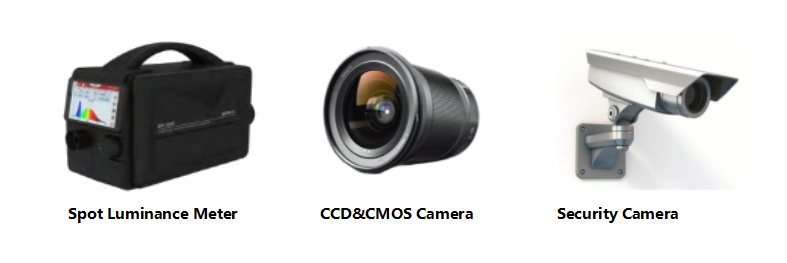

SLS-50 is a standard source that can provide uniform and stable luminance (radiance), which can be used for display enterprises, quality inspection and measurement institutions, scientific research institutes to calibrate the luminance meter, standard source for experiments, etc., mainly used for luminance meter, image sensor, photometer, radiometer and electronic image equipment calibration and calibration. It has the advantages of good luminance uniformity, large luminance adjustment range, high stability and portability.

Main Characteristics

1.Built-in touch screen and luminance detector, display luminance data in real time

The SLS-50 standard luminance source has a large luminance and  illuminance adjustment range, built-in monitoring and feedback system, can set the luminance, and the system automatically adjusts to the target luminance.

2.wide luminance adjustment range

The luminance is continuously adjustable between 1 and 10000 cd/m2, which can be customized to achieve weak luminance of 0.001 cd/m2 and high luminance above 10000 cd/m2.

3.High luminance stability and well luminance uniformity

The integrating sphere coating is developed by the patented technology of EVERFINE, and the uniformity of the light emitting surface is better. In addition, the luminance output has high precision and can be used for measurement and calibration of cameras,ambient light sensors, imaging devices, etc.

4.Portable

The software configuration is android system, supports touch screen operation, friendly interface, convenient for large luminance measurement system calibration, but also easy for production line integration.

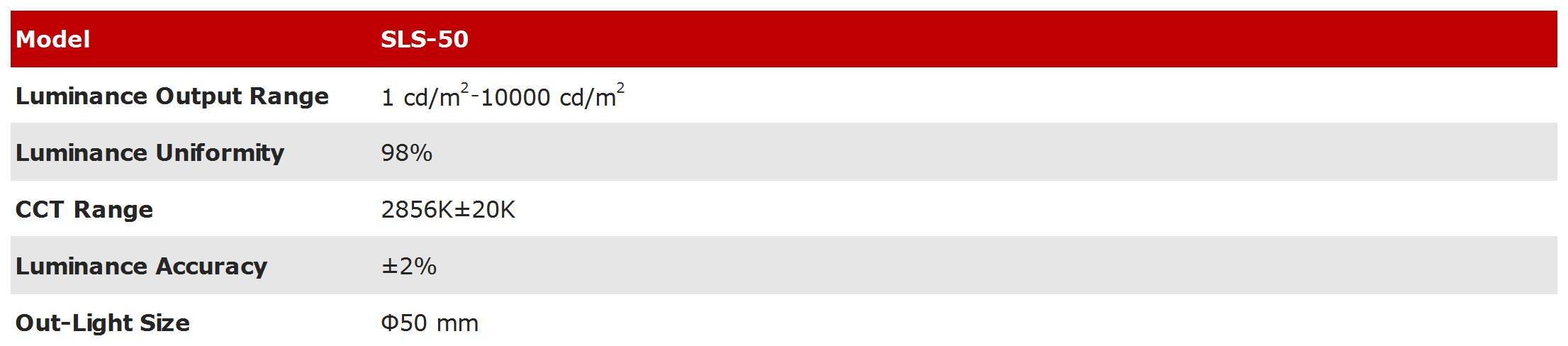

Technical Specifications
