ATA-500 자동 온도 제어 측정 시스템

Meet the requirements of the US Energy Star IESNA LM-85 standard

파장범위: 380 ~ 780nm

파장정밀도: 0.2nm

온도조절방식: TEC자동조절

온도조절 범위: 5ºC ~ 120ºC

목록보기

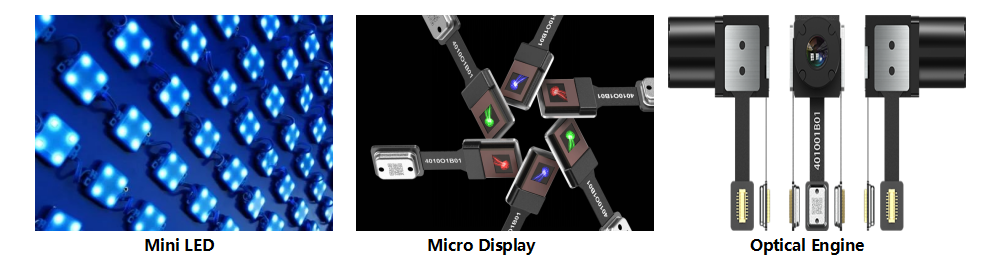

Typical Application Scenarios

ATA-500 is mainly used to mearsure the photometric&colorimetric&electrical characteristics of Micro LED screen and optical engine at different temperatures.

Main Characteristics

1. TEC automatic temperature control

Using the world's leading spectroradiometer technology, it measures the photochromic comprehensive characteristics of single LED, Mircro LED,optical engine and other products at different case temperature/junction temperature.

2. High Measurement Accuracy & Speed

The cor components won“National High-Tech Program (863 program) Research Achievement”,”US Patent Granted (No.: US 7,978,324 B2)”,””China Excellent Patent Award“,”Independent Innovation Product” and “National Key & New Product”.

3. Pulse&Constant Measurement Mode

With the EVERFINE special test power supply, the transient optical characteristics of LED can be measured (pulse measurement) and constant optical characteristics measurement (DC measurement).

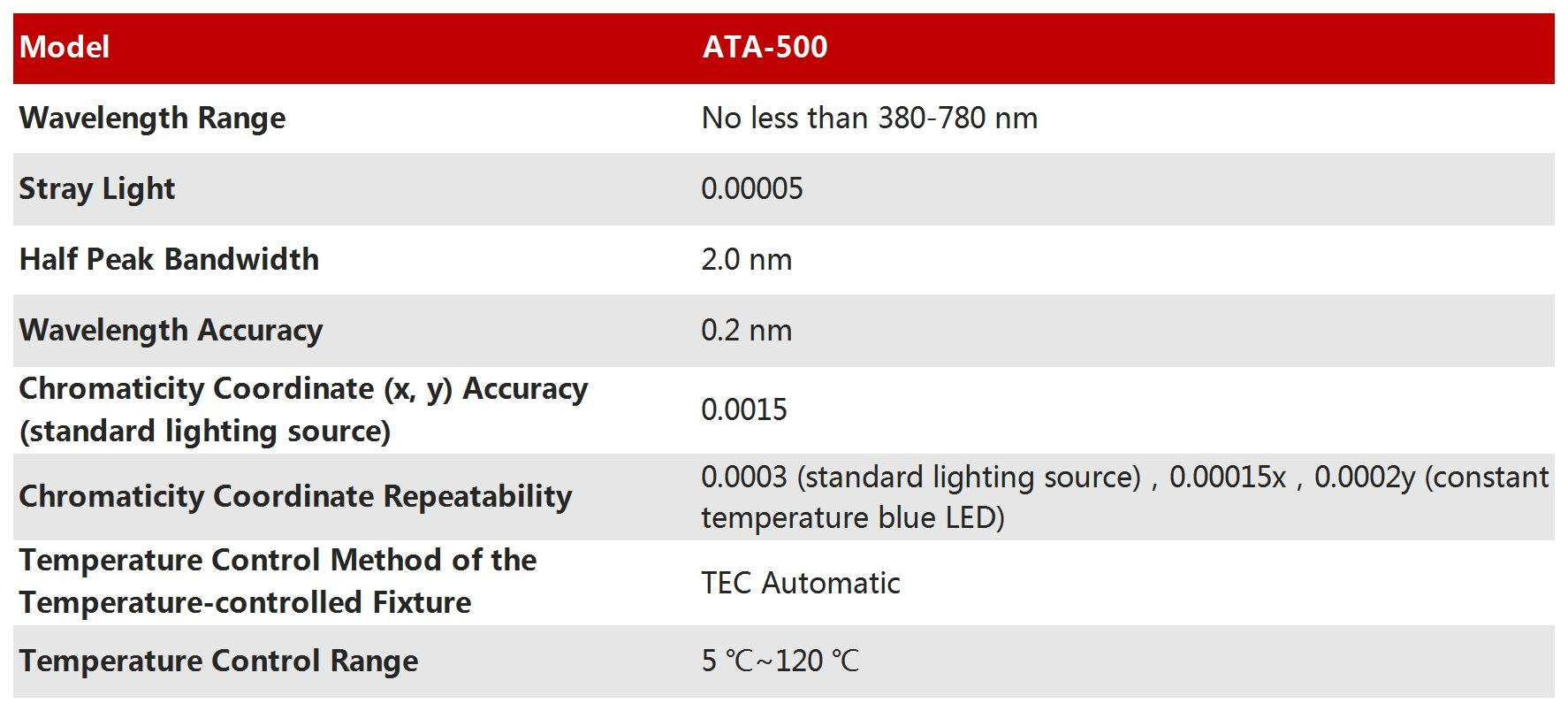

Technical Specifications
