EMS61000-12C

10.1 inch capacitive touch screen based on Android development At the same time, it meets the test requirements of Energy Star for light sources and lamps

측정규격: IEC61000-4-12, ANSI/IEEE C62.41.2-2002

목록보기

Typical Application Scenarios

EMS61000-12C can simulate the ring wave generated by the induction of low voltage cables due to electrical network, reactance load switching, power circuit failure, insulation breakdown or lightning strike. It is highly intelligent and easy to use, and is widely used in the evaluation of the ring wave immunity performance of lighting products.

Main Characteristics

1.10.1 inch LCD touch display, friendly human-computer interaction interface.

2. Surge voltage up to 7kV to meet the strict test requirements.

3. Built-in voltage and current differential probe to realize the surge voltage, current peak measurement function and surge threshold setting function.

4. Built-in file system supports U disk reading and writing, it can easily import, export and save related programs and test reports.

5. Built-in three-phase five-wire power line coupling and decoupling network, it can realize automatic switching of the coupling path.

6. Equipped with USB and RJ45 communication function.

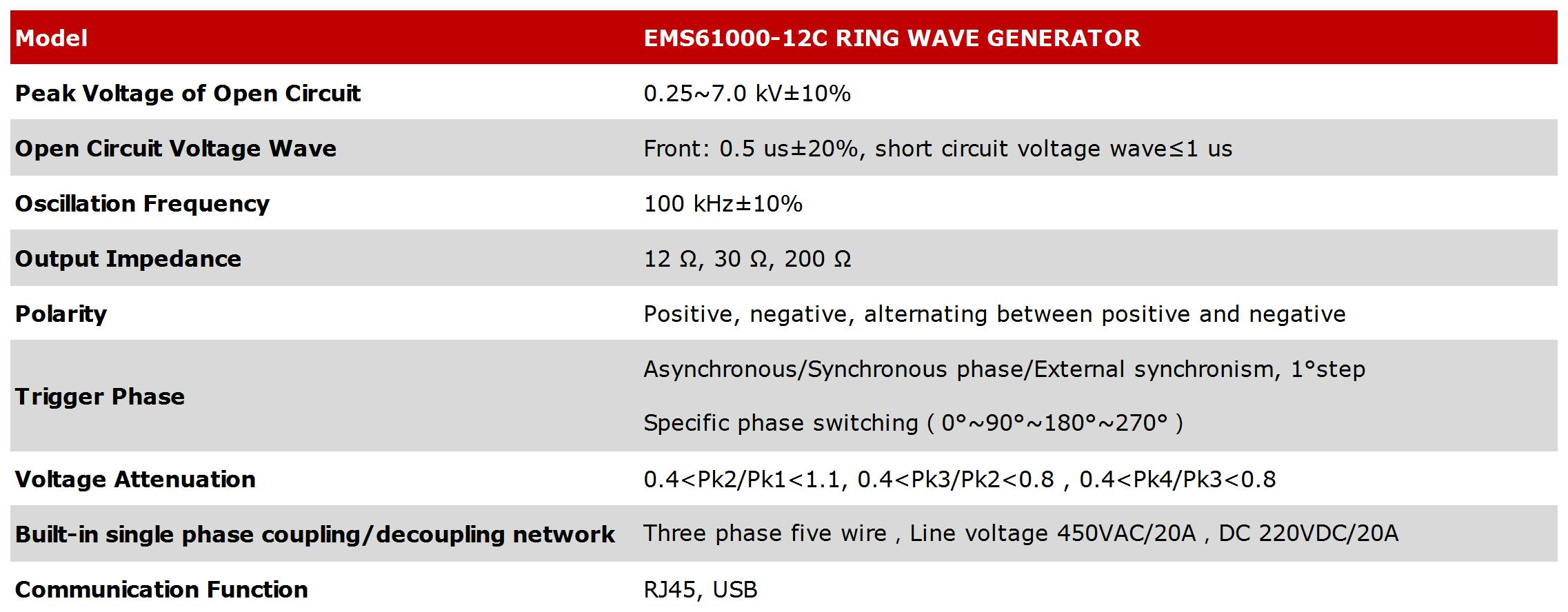

Technical Specifications
