EMS61000-5A

10.1 inch capacitive touch screen, based on Android development Unique threshold setting limit function in the industry, won national invention patent

측정규격: IEC61000-4-5

목록보기

Typical Application Scenarios

EMS61000-5A can automatically switch differential mode/common mode test and surge path with surge voltage peak value, current peak value measurement and threshold value setting functions and built-in intelligent single-phase CDN, surge voltage and current differential probe and IEC standard test level, it is suitable for lightning surge tests of various lighting appliances, electronic circuits and equipment.

Main Characteristics

1. Built in CWG and MF generators, it can realize lightning surge test and pulse magnetic field test simultaneously.

2. Programmable boost voltage, surge voltage up to 7kV, to meet the strict test requirements.

3. Built-in single-phase power line coupling decoupling network to achieve automatic switching coupling path.

4. Built-in voltage and current differential probe to realize the surge voltage, current peak measurement function and surge threshold setting function.

5. Built-in file system supports U disk reading and writing, it can easily import, export and save related programs and test reports.

6. 10.1 inch LCD touch display, friendly human-computer interaction interface.

7. Equipped with RJ45 communication function.

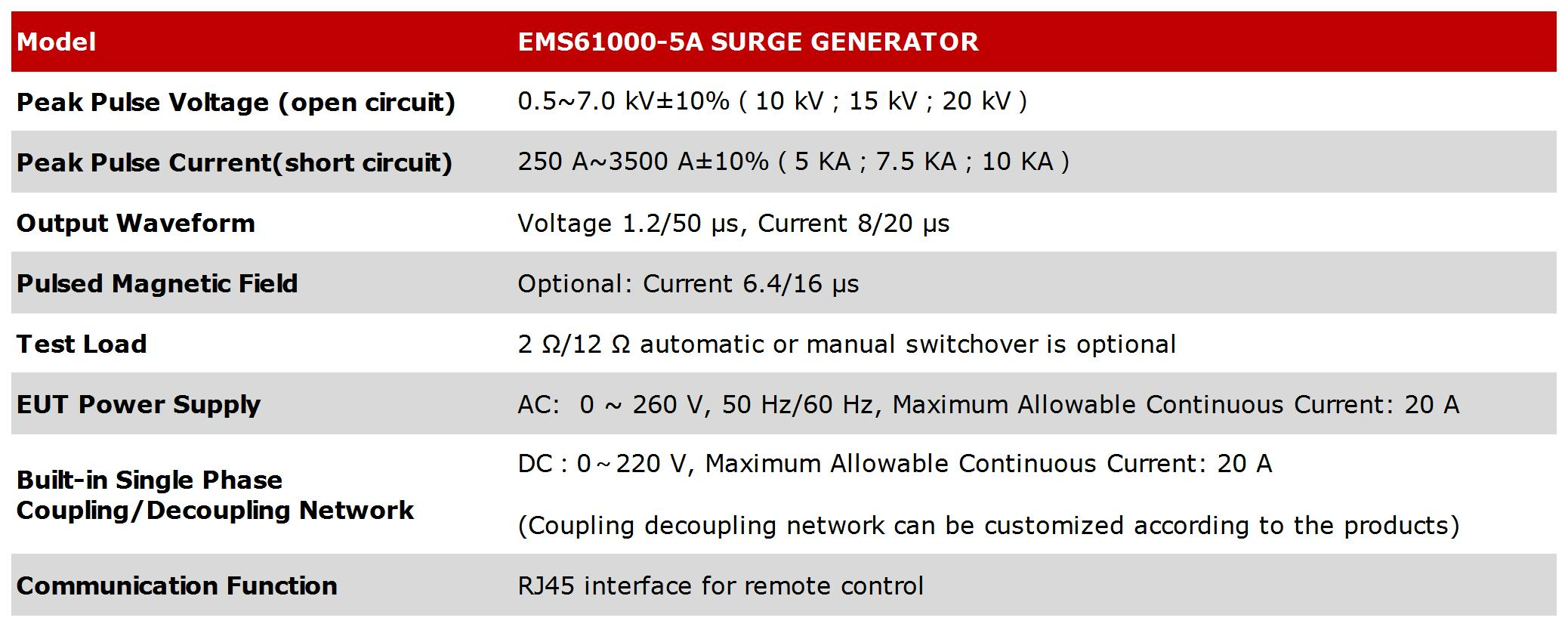

Technical Specifications
