U-10 UV 방사계

Measurement of outdoor UV index in relation to medical testing

파장범위: 280nm ~ 400nm

측정범위: 0.01UVI ~ 50UVI

통신포트: USB

목록보기

Typical Application Scenarios

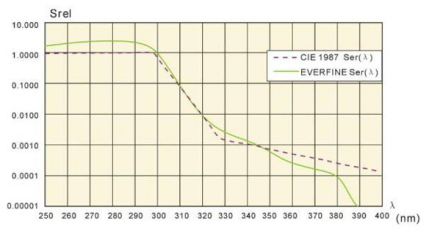

The detector is used for the evaluation of ultraviolet index, and meets the requirements of CIE S013/E:2003 standard. The spectral sensitivity of the detector meets the spectral response curve of CIE S007 erythema effect.

Main Characteristics

1. According to the requirements of CIE S013 / e2003 standard, the instrument accurately matches the CIE erythema effect curve with high measurement accuracy.

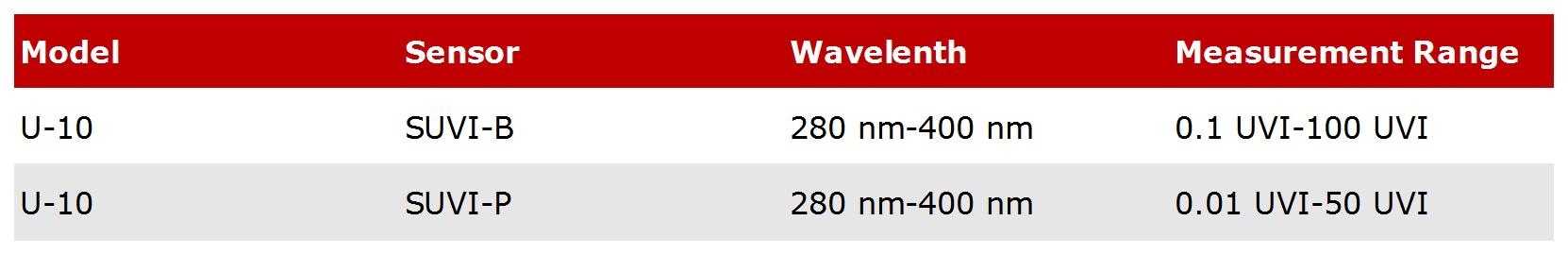

2. Two detectors can be selected to achieve different measurement ranges and meet different precision requirements.

3. The S series linear ultraviolet detector has compact structure, good stability, little influence by visible light (especially excellent visible light cut-off performance) for the evaluation of ultraviolet index.

4. It has the advantages of high accuracy, low volume, low power consumption, stable performance, easy to use and easy carrying.

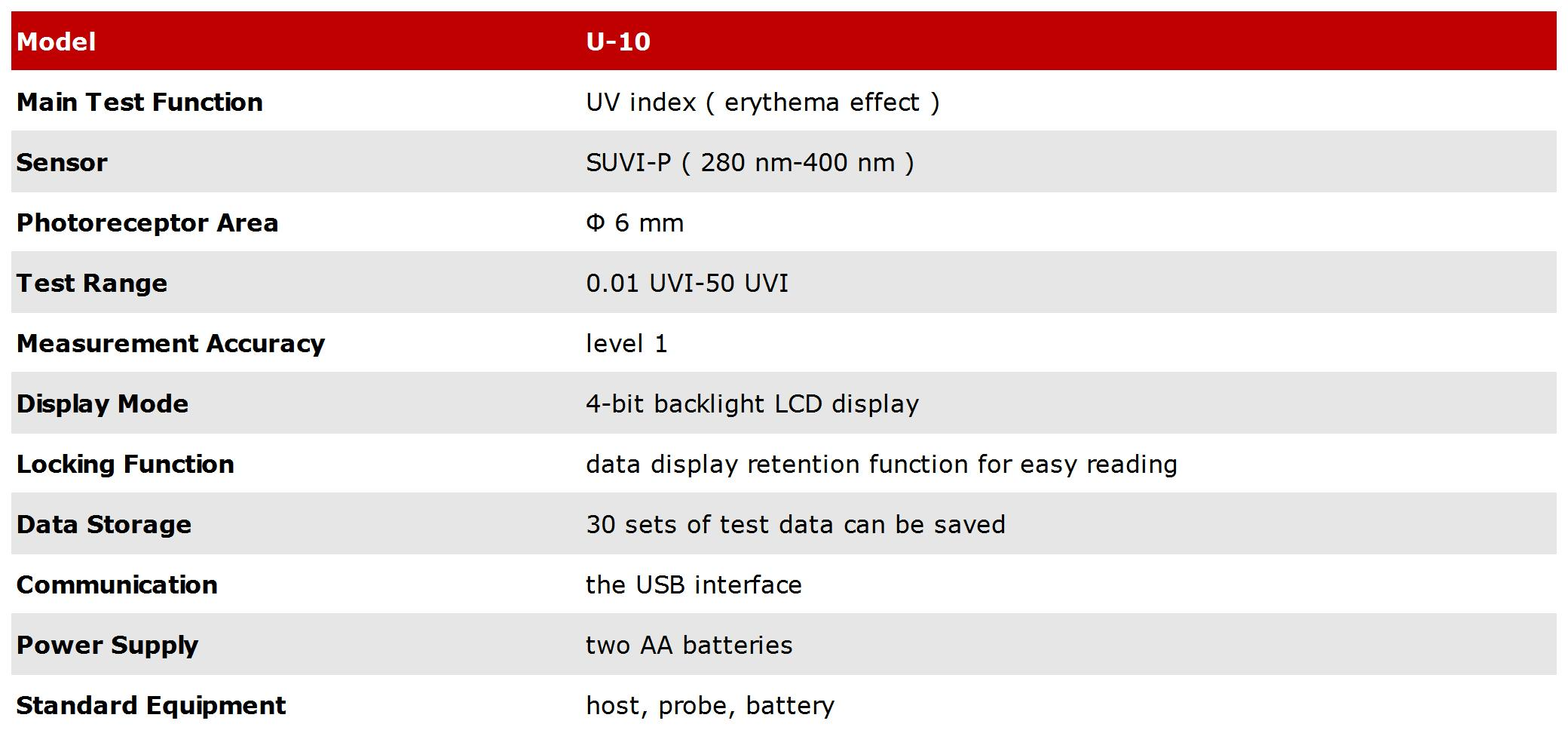

Technical Specifications
