SRS-200A 블루라이트 안전성 평가장비

Portable Blue Light Hazard Evaluation System

측정규격: IEC62471, IEC62778

파장범위: 300nm ~ 780nm

목록보기

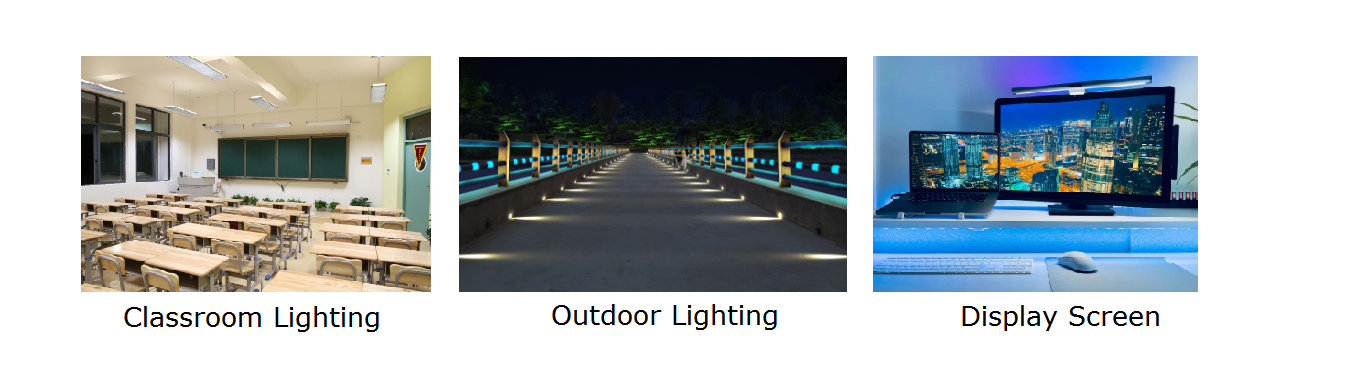

Typical Application Scenarios

SRS-200A is a new generation of portable photo-biological safety test and evaluation equipment. Based on the mainfunctions of the laboratory spectral radiation safety test system, the convenience and operability of test are fully considered.To some extent, the analyzer makes up for on site measurement insufficiency.

Main Characteristics

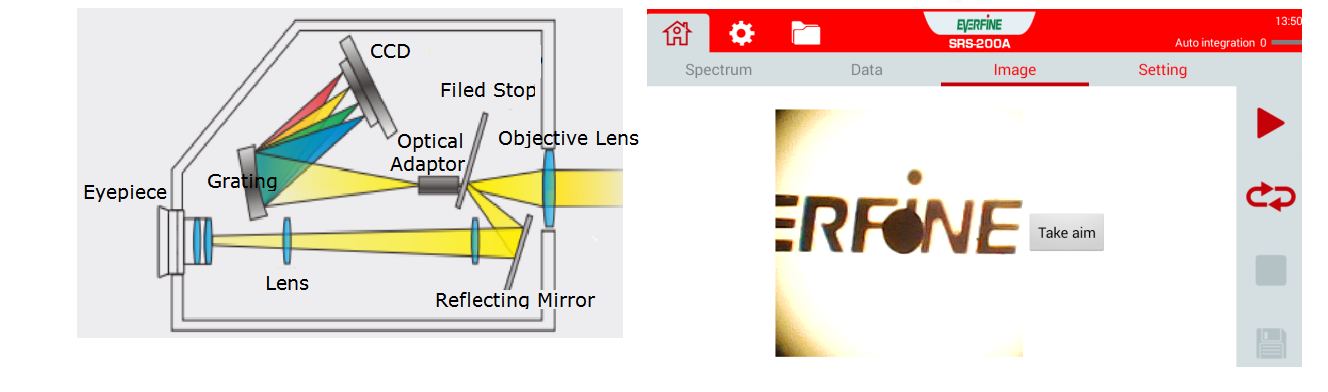

1. Dual Beam Design

The unique dual optical path design can be aimed and measured at the same time, ensuring the convenience and reliability of the measurement process.

2. Comprehensive Function

The measurement function is powerful, and a variety of optical radiation safety parameters can be measured and analyzed in the field. Built-in light radiation safety blue light hazard measurement standard three measurement fields of view, built-in multiple test standard methods and determination thresholds for different test needs.

3. Fast and Accurate Measurement

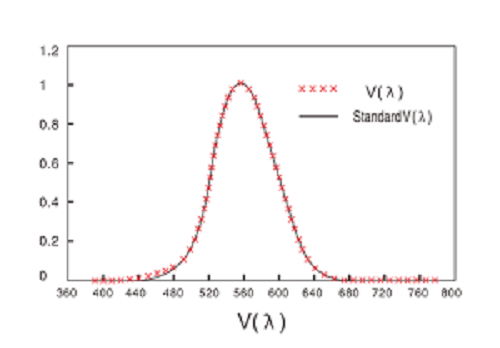

Using high-performance array detector, the measurement speed is fast and the sensitivity is high. Built-in spectrum test module, no mismatching error, to ensure high measurement accuracy.

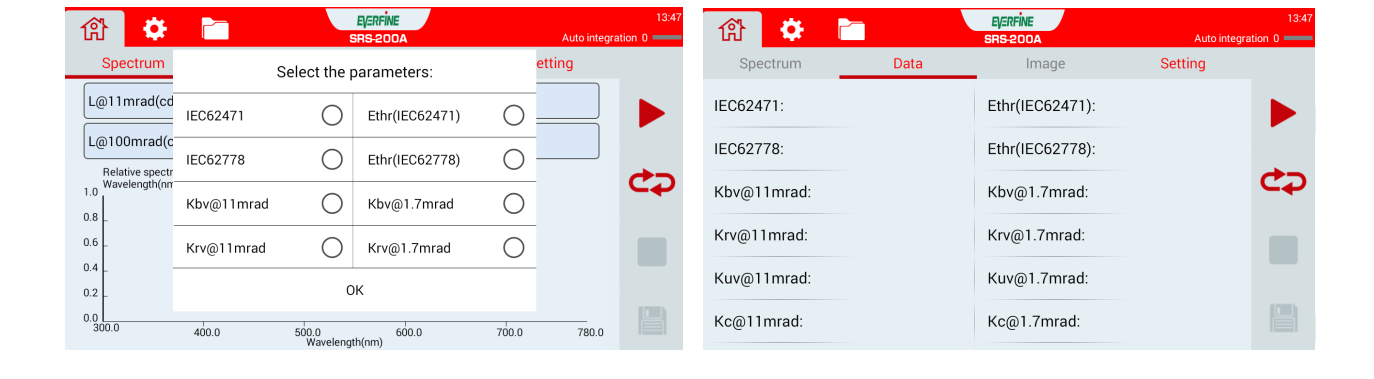

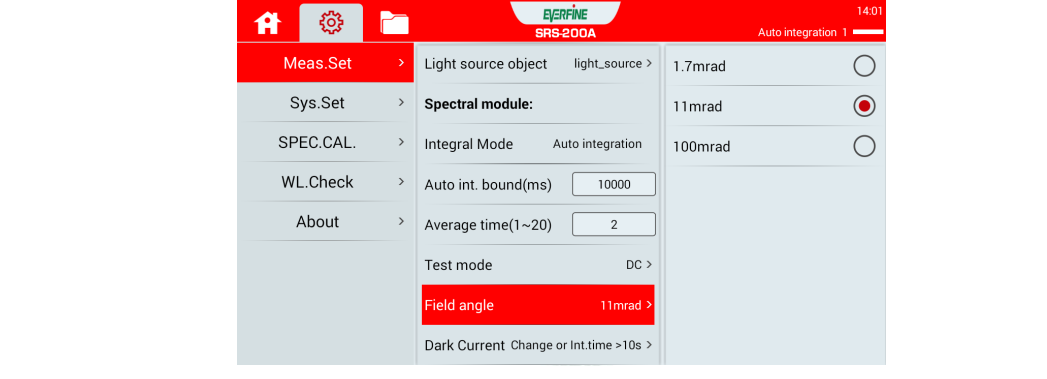

4. Clear and Friendly Interface

It is equipped with a friendly human-computer interface, which is convenient for parameter setting and real-time display of measurement results, and effectively improves the efficiency of blue light hazard measurement.

5. Abundant Measurement Parameters

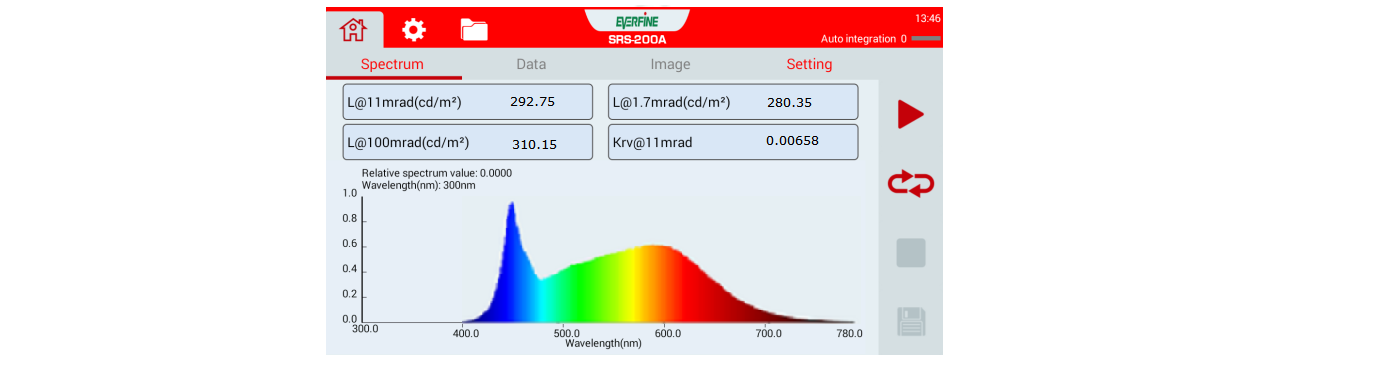

It includes parameters such as weighted radiance of retinal blue light hazard, blue light hazard efficiency, violet/infrared radiation hazard, light health parameters such as rhythm factor, and conventional measurement parameters such as spectrum, chroma and luminance.

6. Wide Wavelength Range

According to the standard medium blue light hazard test requirements, to achieve a wide wavelength range (300nm-780nm) spectrum measurement.

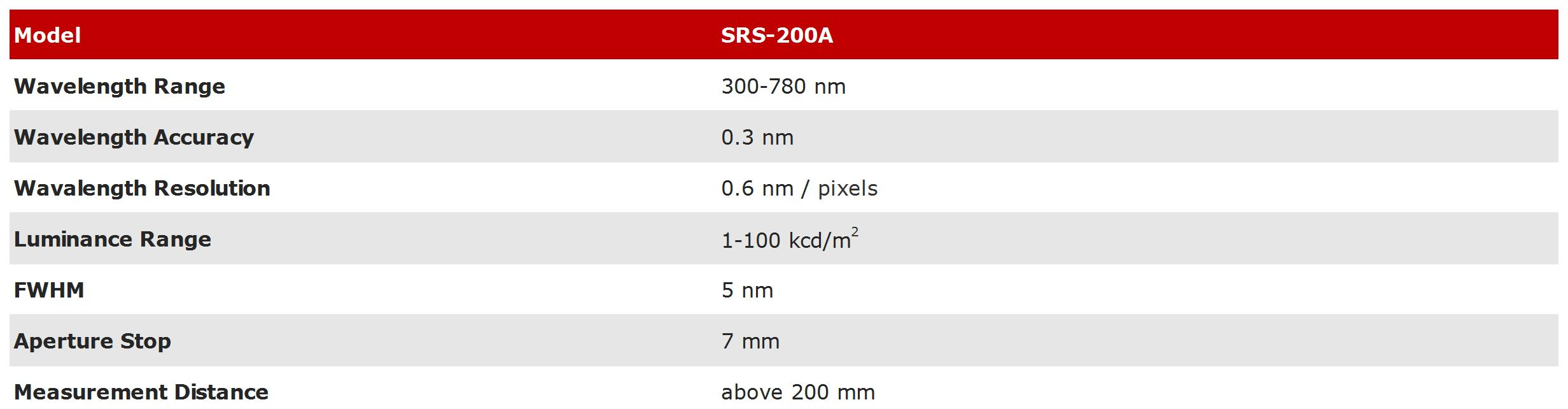

Technical Specifications
